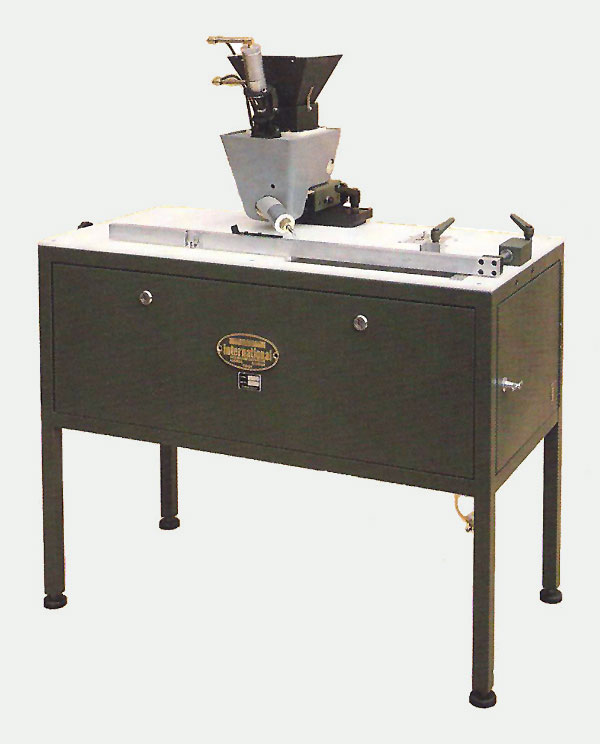

Box Assembling Machine Model L

Download Specs KB (pdf)

  • The machine applies adhesive to the box, forms and presses the edges.
  • Top and bottom of carton can be made with minor adjustments.
  • Edges are sealed with Thermo Adhesive which guarantees a quick and secure bond.
  • The change-over time of the machine is minimal as only the hammer needs to be replaced for different type boxes.
  • The maximum size box that can be processed is 12" x 6".
  • Several different sizes can be made with the same hammer.

Specifications

Air:

Pressure:
70 to 80 per square inch
Consumption:
.52 cubic feet free air per minute (15liter/min.)

Electrical:

110V, 60 cycles single phase

Weight:

209 lbs. (95kgs)

Dimensions:

width: 20" (500mm)
depth: 40" (1,000 mm)
height: 44" (1,100 mm)

Production Data:

2,000 units in eight hour day.
