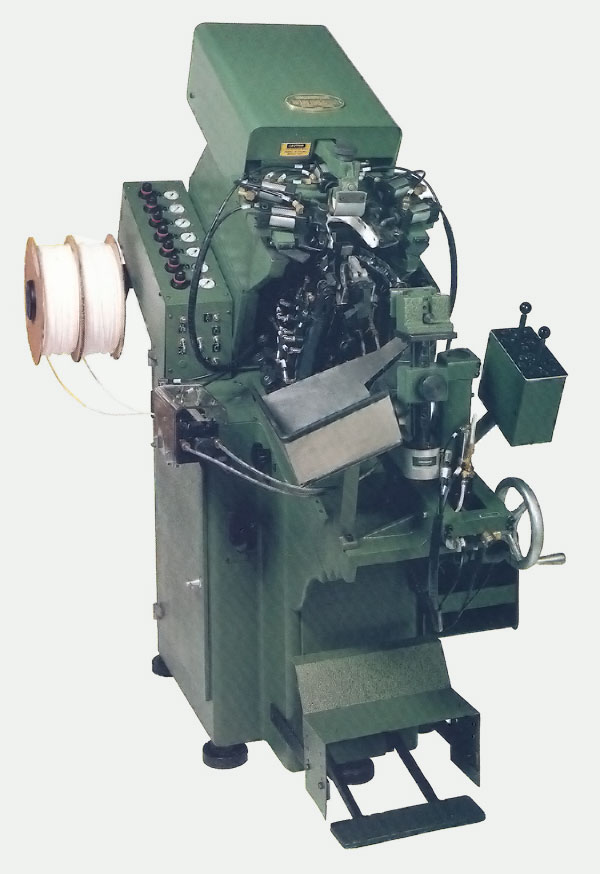

Combination Toe Thermalaster Model M7E, M7H, M7F(CTT-M7E-M7H-M7F)

Download Specs KB (pdf)

The Combination Toe Thermalaster M7E, H or F have been designed to meet the difficulties of today's shoe industry. They are built to provide increased productivity, better quality, reliability at economical prices. Data for the different models.

  • All 3 models are perfectly suited for women, men or children shoes, but the M7H is ideal for heavy work, like work boots.
  • The pincers are mounted on a swing table to ensure easy loading especially for lady boots.
  • The pull on each individual pincer can be increased by the operator by means of a joy stick control.



M7E

M7H

M7F

Production

180prs/hr

180prs/hr

120prs/hr

Welt Process

yes

yes

no

Stitch Down

yes

yes

no

9 Pincers available

yes

yes

yes

Joint Wiping

no

no

yes

Rod Cement

yes

yes

yes

5 Point Toe Band

yes

yes

yes

Vamp Gauge Light

Optional

Optional

Optional

Specifications

Air:

Pressure:
5.5 Bar Minimum
Consumption:
105 Liter/min. at 180 Prs/hr Production

Electrical:

220 V, 1 phase, 10 Ampere

Weight:

990 lbs. (450kg)

Dimensions:

(915W x 1,400D x 1,725H mm)
