Pre-Fit Machines

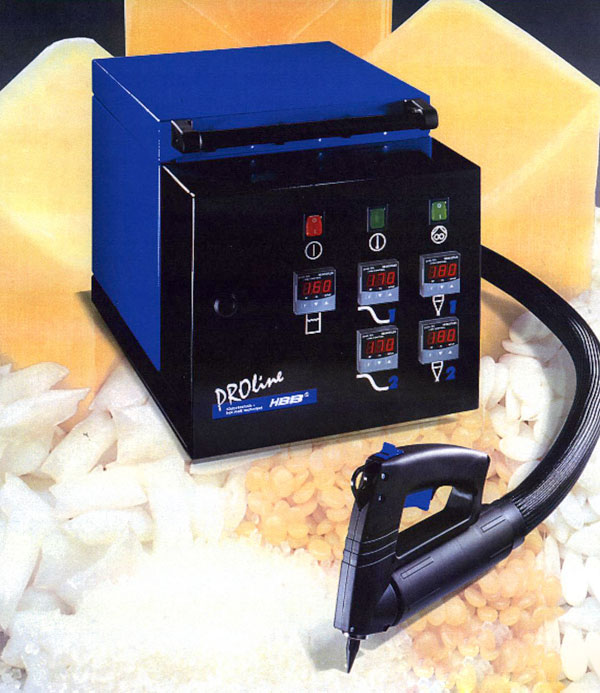

PAM Proline
Download Specs KB (pdf)
Technical Data
Supply Voltage:
230 V/ 50-60 Hz
Power Consumption:
1,200 W
Maximum additional power:
1,600 W (option 2,400 W)
Hose connection:
alternatively 1 or 2
Motor:
A, C, motor
Gear pump:
15.0 kg/h pump rate
Tank capacity:
4.5 ltrs.
Melt rate:
approx. 4.5 kg/h*
Temperature range:
Standard:
135-230°C
Option:
60-230C
Weight:
35 kg
Dimensions:
500 x 365 x 370 mm
*applicable to 175C/ 2,000mPas.
Subject to technical alteration
